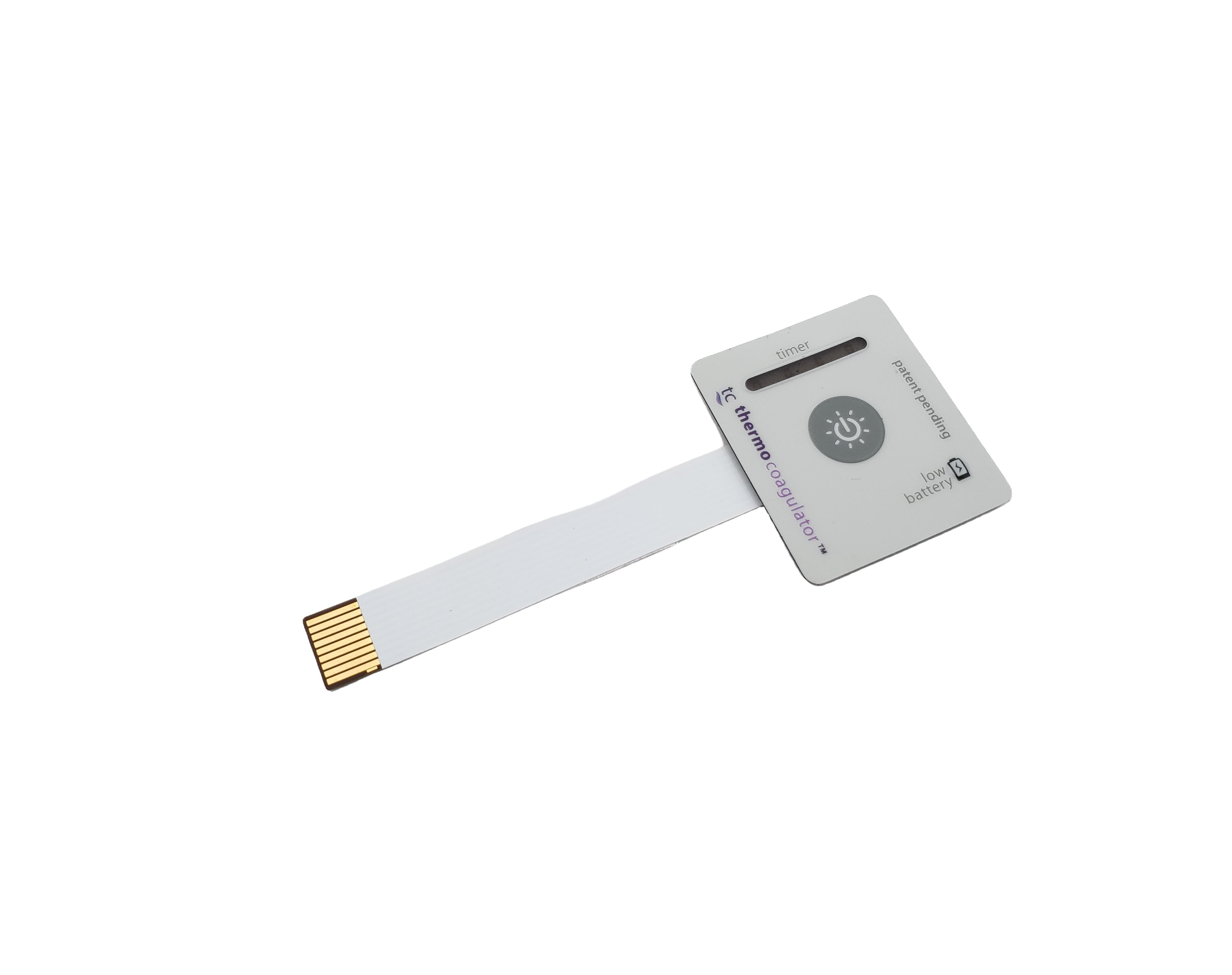

0.5oz 1oz 2oz PCB With FPC Tail Printed Circuit Board
| Place of Origin | China |
|---|---|
| Brand Name | ADMG |
| Certification | ISO14001 ISO9001 |
| Model Number | OEM/ODM |
| Minimum Order Quantity | 2pcs |
| Price | Negotiation |
| Delivery Time | 5-8 working days |
| Payment Terms | L/C, D/A, D/P, T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Material | Epoxy Resin | Rohs Compliant | Yes |
|---|---|---|---|
| Number Of Layers | Single/Double/Multilayer | Surface Finish | HASL/ENIG/OSP |
| Copper Weight | 0.5oz/1oz/2oz | Product Type | Printed Circuit Board |
| High Light | 2oz pcb with fpc tail,0.5oz pcb with fpc tail |
||
Product Description
State-Of-The-Art Technology In The Advanced PCB With FPC Tail Enhanced Functionality
PCB with FPC Tail Description:
Introducing the Advanced PCB with FPC Tail, a cutting-edge solution that combines precise circuitry, flexible integration, and enhanced functionality. This advanced PCB design leverages state-of-the-art technology to deliver superior performance, seamless connectivity, and expanded possibilities in a wide range of electronic systems.
PCB with FPC Tail Parameters:
|
Parameter |
Description |
|---|---|
| Number of Layers | 4, 6, 8, or more |
| Copper Thickness | 0.5 oz to 2 oz per layer |
| Dielectric Thickness | 0.2 mm to 2 mm |
| Material | FR-4, Rogers, Polyimide, etc. |
| Minimum Trace Width | 3 mil to 10 mil |
| Minimum Drill Size | 0.3 mm to 0.8 mm |
| Impedance Control | 50 Ω, 75 Ω, or custom |
| Surface Finish | ENIG, HASL, Immersion Gold, etc. |
| Solder Mask | Liquid Photo Imageable (LPI), Dry Film |
| Legend | Silk Screen, Laser Printed |
PCB with FPC Tail Applications:
The Advanced PCB with FPC Tail is designed to excel in a wide range of applications across industries. It is particularly suited for high-performance computing, telecommunications, aerospace, industrial automation, and advanced medical devices. This versatile solution empowers projects that require precise circuitry, flexible integration, and enhanced functionality.
PCB with FPC Tail Features:
- High-Precision Circuitry: The Advanced PCB with FPC Tail utilizes state-of-the-art manufacturing processes to achieve precise circuitry, ensuring optimal signal integrity and performance.
- Flexible Integration: The FPC tail allows for flexible integration of rigid and flexible components, enabling seamless connections and adaptability in complex electronic systems.
- High-Density Interconnections: This PCB design supports high-density interconnections, facilitating the integration of intricate circuitry and diverse components.
- Customizable Solder Mask: Choose from a range of colors for the solder mask, allowing customization to align with branding guidelines or aesthetic preferences.
- Versatile Surface Finish: Select from surface finish options such as HASL, ENIG, or OSP, ensuring compatibility with various assembly processes and environmental conditions.
- Diverse Material Options: The Advanced PCB with FPC Tail is available in high-quality FR-4 and polyimide materials, offering flexibility and performance options.
- Advanced Testing: Rigorous testing, including flying probe and in-circuit testing (ICT), guarantees the quality, functionality, and compliance of the product.
- Expanded Size Capability: With a maximum size of 600mm x 600mm, this PCB design accommodates larger and more complex electronic systems.
- RoHS Compliance: This solution is environmentally friendly and complies with RoHS regulations, promoting sustainable and responsible manufacturing practices.
- Enhanced Functionality: The Advanced PCB with FPC Tail delivers enhanced functionality, enabling advanced features and performance in electronic systems.
PCB with FPC Tail Advantages:
- Precision and Reliability: The Advanced PCB with FPC Tail achieves precise circuitry, ensuring optimal signal integrity and reliability in demanding applications.
- Seamless Integration: The FPC tail enables seamless integration of rigid and flexible components, allowing for adaptability and compatibility in complex electronic systems.
- High-Density Integration: The PCB design supports high-density interconnections, facilitating the integration of intricate circuitry and diverse components.
- Customizable Aesthetics: Choose from a variety of solder mask colors to align with branding guidelines or specific design preferences, enhancing product aesthetics.
- Compatibility and Versatility: The versatile surface finish options and material choices ensure compatibility with different assembly processes and performance requirements.
- Comprehensive Testing: Rigorous testing guarantees the quality, functionality, and compliance of the Advanced PCB with FPC Tail.
- Expanded Size Capability: The larger size capability of this PCB design enables the integration of more components and functionality into electronic systems.
- Environmentally Friendly: RoHS compliance promotes eco-friendly manufacturing practices, contributing to a sustainable and greener future.
- Enhanced Functionality: The Advanced PCB with FPC Tail empowers electronic systems with advanced features and expanded functionality.
- Wide Range of Applications: This solution finds utility in various industries, powering high-performance computing, telecommunications, aerospace, industrial automation, and advanced medical devices.
Unlock the potential of precise circuitry, flexible integration, and enhanced functionality with the Advanced PCB with FPC Tail. Experience superior performance, seamless connectivity, and expanded possibilities in your electronic designs. For more information or inquiries, please contact us.
Request for Quotation (RFQ):
If you are interested in our Custom Tactile Membrane Switch, please provide the following information for a quotation:
- Customization requirements, including size, shape, graphics, layout, and backlighting
- Quantity needed
- Application and industry details
- Specific environmental considerations (e.g., waterproof or dustproof requirements)
- Delivery time and location requirements
