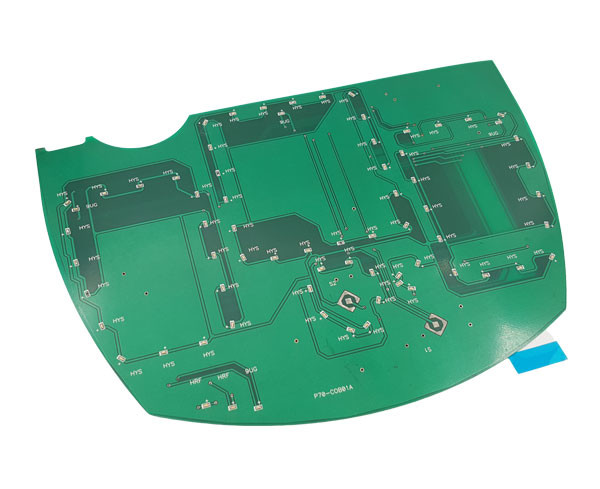

Experience Precise Control PCB Membrane Switch High Precision Design
| Place of Origin | China |
|---|---|
| Brand Name | ADMG |
| Certification | ISO14001 ISO9001 |
| Model Number | OEM/ODM |
| Minimum Order Quantity | 2pcs |
| Price | Negotiation |
| Delivery Time | 5-8 working days |
| Payment Terms | L/C, D/A, D/P, T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Circuitry Type | Single-sided Or Double-sided | Adhesive | 3M/Other |
|---|---|---|---|
| Color | Blue Yellow Red Black | Origin | China |
| Type | Membrane Switch | Non-conductive Ink | |
| High Light | precise control pcb membrane switch,pcb membrane switch high precision,precise control dome membrane switch |
||
Product Description
PCB Membrane Switch Introduction:
Welcome to the world of PCB Membrane Switches, where seamless control and versatility come together. This cutting-edge control solution combines the reliability of printed circuit boards (PCBs) with the flexibility of membrane switches, delivering an unmatched user experience. With its compact design and advanced features, the PCB Membrane Switch revolutionizes control panel interfaces across various industries.
PCB Membrane Switch Specifications:
|
Parameter |
Description |
|---|---|
| Size | Customizable |
| Thickness | 0.5-1.0mm |
| Contact Rating | 24VDC, 100mA |
| Actuation Force | 100-400g |
| Tactile Feedback | Yes |
| Lifespan | 1 million+ touches |
| Operating Current | <100mA |
| Operating Temperature | -20°C to +70°C |
| Customization | Graphics, Layout, Size |
| Response Time | <5ms |
PCB Membrane Switch Features:
- High Precision: The PCB Membrane Switch ensures precise control inputs, allowing users to navigate control panels with utmost accuracy.
- Space-Saving Design: With its slim and compact profile, the switch optimizes space utilization within control panels, offering more flexibility in design layouts.
- Durability and Dependability: Constructed with high-quality materials and advanced manufacturing techniques, the switch guarantees long-lasting performance and reliability, minimizing maintenance requirements.
- Customizable Graphics: Tailor the switch with customized graphics to match your branding and design preferences, creating a cohesive and professional appearance.
- Tactile Feedback: The switch provides tactile feedback, giving users a responsive and intuitive control experience.
- Swift and Responsive: With a rapid response time, the switch ensures quick and accurate control inputs, enabling efficient operation.
- Wide Operating Temperature Range: The PCB Membrane Switch operates reliably in a broad temperature range, making it suitable for diverse environments and applications.
- Versatile Interface Options: The switch supports multiple interface options, such as USB, RS232, and SPI, ensuring seamless integration with various control systems.
- Environmental Resilience: With IP65 and NEMA 4X ratings, the switch is resistant to water, dust, and environmental factors, ensuring reliable performance even in challenging conditions.
- Extended Lifespan: Engineered for durability, the PCB Membrane Switch boasts a lifespan exceeding 1 million activations, reducing the need for frequent replacements.
PCB Membrane Switch Applications:
The PCB Membrane Switch finds applications in a wide range of industries, including industrial automation, medical devices, telecommunications, aerospace, and more. It is ideal for control panels, operator interfaces, instrument panels, and any application that requires precise control and user-friendly operation.
PCB Membrane Switch Advantages:
- Enhanced Control Precision: The PCB Membrane Switch provides precise and accurate control inputs, improving the overall performance of control systems.
- Intuitive User Interface: With tactile feedback and intuitive operation, the switch ensures a user-friendly interface, enhancing ease of use and productivity.
- Design Flexibility: The switch's compact design allows for easy integration into various control panel layouts, accommodating diverse design requirements.
- Customization Options: Customize the switch's appearance with graphics and branding elements, creating a unique and cohesive visual identity.
- Rapid Response Time: The switch's quick response time facilitates swift and accurate control inputs, enabling efficient operation and reducing response delays.
- Reliable Performance: Built with high-quality materials, the PCB Membrane Switch guarantees long-lasting and dependable performance, minimizing system downtime.
- Seamless Compatibility: With its versatile interface options, the switch seamlessly integrates with a wide range of control systems, ensuring smooth operation.
- Environmental Resilience: The switch's IP65 and NEMA 4X ratings ensure resistance to water, dust, and environmental factors, making it suitable for demanding conditions.
- Cost-Effective Solution: The longevity and low maintenance requirements of the PCB Membrane Switch contribute to cost savings over the product's lifespan.
- Improved User Satisfaction: By providing precise control inputs and seamless operation, the switch enhances user satisfaction and overall system performance.
Discover the power of the PCB Membrane Switch and unlock seamless control and versatility for your control panel applications. Experience precision, reliability, and user-friendly operation like never before. For further information or inquiries, please contact us.
Request for Quotation (RFQ):
If you are interested in our Custom Tactile Membrane Switch, please provide the following information for a quotation:
- Customization requirements, including size, shape, graphics, layout, and backlighting
- Quantity needed
- Application and industry details
- Specific environmental considerations (e.g., waterproof or dustproof requirements)
- Delivery time and location requirements
