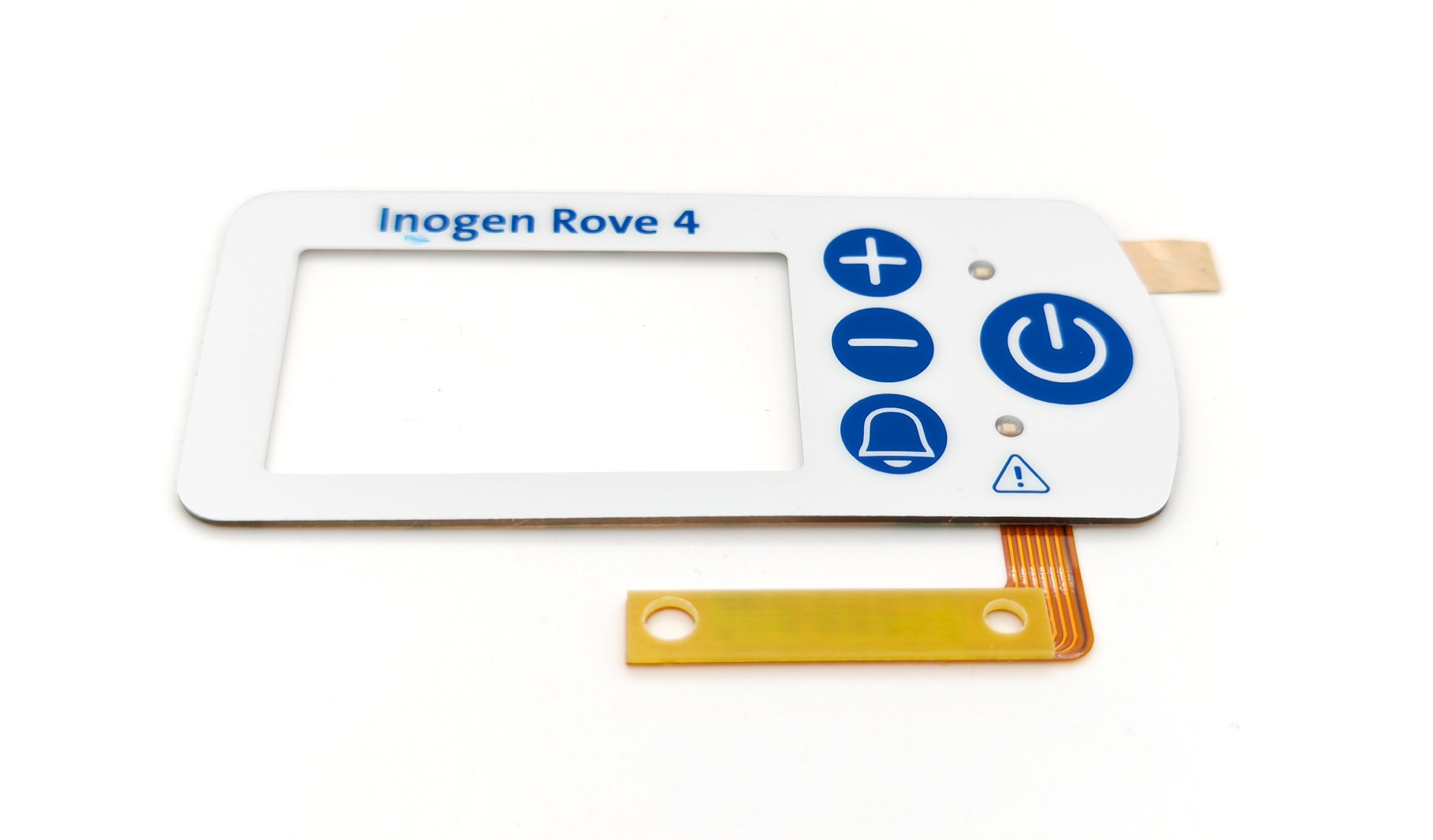

High Performance PCB With FPC Tail FR-4 Rogers Polyimide
| Place of Origin | China |
|---|---|
| Brand Name | ADMG |
| Certification | ISO14001 ISO9001 |
| Model Number | OEM/ODM |
| Minimum Order Quantity | 2pcs |
| Price | Negotiation |
| Delivery Time | 5-8 working days |
| Payment Terms | L/C, D/A, D/P, T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | FR-4 | Layers | 2 |
|---|---|---|---|
| Min. Silkscreen Line Width | 0.15mm | Testing | Flying Probe |
| Min. Line Width/Spacing | 0.1mm | Min. Solder Mask Dam | 0.1mm |
| Highlight | pcb with fpc tail fr-4,high performance pcb with fpc tail |
||
Product Description
High-Performance PCB With FPC Tail Solution For Your Interconnectivity Needs
PCB with FPC Tail Introduction:
The Reliable PCB with FPC Tail is a high-performance printed circuit board design that combines the durability of a rigid PCB with the flexibility of a Flexible Printed Circuit (FPC) tail. Engineered for reliability and longevity, this innovative solution delivers seamless interconnectivity and robust performance in a wide range of applications.
PCB with FPC Tail Specifications:
|
Parameter |
Description |
|---|---|
| Number of Layers | 4, 6, 8, or more |
| Copper Thickness | 0.5 oz to 2 oz per layer |
| Dielectric Thickness | 0.2 mm to 2 mm |
| Material | FR-4, Rogers, Polyimide, etc. |
| Minimum Trace Width | 3 mil to 10 mil |
| Minimum Drill Size | 0.3 mm to 0.8 mm |
| Impedance Control | 50 Ω, 75 Ω, or custom |
| Surface Finish | ENIG, HASL, Immersion Gold, etc. |
| Solder Mask | Liquid Photo Imageable (LPI), Dry Film |
| Legend | Silk Screen, Laser Printed |
PCB with FPC Tail Application Usage:
The Reliable PCB with FPC Tail is designed to excel in a variety of industries, including medical equipment, industrial automation, aerospace, transportation, and consumer electronics. Its robust construction and seamless interconnectivity make it an ideal choice for applications that require high reliability, durability, and the ability to bridge connections between rigid and flexible components.
PCB with FPC Tail Features:
- Multi-layer PCB design with 4 to 10 layers for enhanced performance and reliability
- Flexible FPC tail for flexible routing and connection to other components
- Robust materials and construction for long-term operation in demanding environments
- Precise manufacturing processes to ensure consistent quality and reliability
- Wide range of surface finishes and solder mask options to suit project requirements
PCB with FPC Tail Advantages:
- Improved reliability and longevity due to the use of high-quality materials and construction
- Enhanced design flexibility and the ability to overcome spatial constraints
- Seamless interconnectivity between rigid and flexible circuit elements
- Reduced assembly time and simplified installation through the integrated PCB-FPC design
- Compatibility with a wide range of manufacturing processes and assembly techniques
Request for Quotation (RFQ):
If you are interested in our Custom Tactile Membrane Switch, please provide the following information for a quotation:
- Customization requirements, including size, shape, graphics, layout, and backlighting
- Quantity needed
- Application and industry details
- Specific environmental considerations (e.g., waterproof or dustproof requirements)
- Delivery time and location requirements
