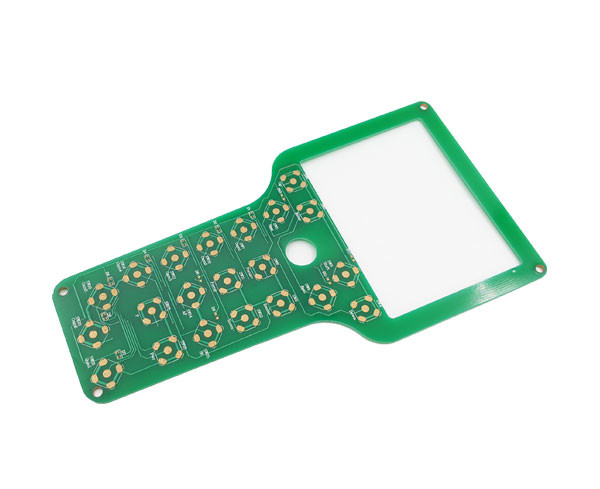

Precision And Reliability PCB Membrane Switch For Industrial Applications
| Place of Origin | China |
|---|---|
| Brand Name | ADMG |
| Certification | ISO14001 ISO9001 |
| Model Number | OEM/ODM |
| Minimum Order Quantity | 2pcs |
| Price | Negotiation |
| Delivery Time | 5-8 working days |
| Payment Terms | L/C, D/A, D/P, T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Life Span | ≥ 1 Million Times | Dimension | According To Customer's Demand |
|---|---|---|---|
| Surface Finishing | Matte/Glossy/Other | Circuit Rating | 35V (DC), 100mA, 1W |
| Current Contact | 2-24V | Keypad Button Material | F150PET |
| High Light | industrial applications pcb membrane switch,industrial applications dome membrane switch |
||
Product Description
PCB Membrane Switch Overview:
Introducing PCB Membrane Switches, a state-of-the-art solution for streamlined control and user-friendly interfaces. These innovative switches combine the reliability of printed circuit boards (PCBs) with the seamless functionality of membrane switches, offering a superior control experience. With their compact design and advanced features, PCB Membrane Switches are revolutionizing control panel interfaces across a wide range of industries.
PCB Membrane Switch Specifications:
|
Parameter |
Description |
|---|---|
| Size | Customizable |
| Thickness | 0.5-1.0mm |
| Contact Rating | 24VDC, 100mA |
| Actuation Force | 100-400g |
| Tactile Feedback | Yes |
| Lifespan | 1 million+ touches |
| Operating Current | <100mA |
| Operating Temperature | -20°C to +70°C |
| Customization | Graphics, Layout, Size |
| Response Time | <5ms |
PCB Membrane Switch Applications:
PCB Membrane Switches have a wide range of applications across industries. They are ideal for control panels in industrial automation, medical devices, consumer electronics, automotive, and more. Whether it's a complex machinery control or a user interface for a medical device, PCB Membrane Switches offer precise control and enhanced user interaction.
PCB Membrane Switch Features:
- Precise Control: PCB Membrane Switches provide accurate and reliable control inputs, ensuring optimal system performance.
- Compact and Space-Saving: With their slim design, these switches maximize space utilization, allowing for efficient control panel layouts.
- Robust and Durable: Built with high-quality materials, PCB Membrane Switches offer long-lasting performance and withstand demanding environments.
- Customizable Graphics: The switches can be customized with graphics, logos, and branding elements, creating a tailored user interface.
- Tactile Feedback: Users can feel the feedback upon activation, providing a tactile and responsive control experience.
- Rapid Response: With a response time of less than 5ms, PCB Membrane Switches enable quick and accurate control inputs, enhancing productivity.
- Versatile Interface Options: The switches support various interface options such as USB, RS232, and SPI, enabling seamless integration with different control systems.
- Environmental Resilience: With IP65 and NEMA 4X ratings, PCB Membrane Switches are resistant to water, dust, and harsh environmental conditions, ensuring reliable operation.
- Extended Lifespan: Designed for durability, these switches have a lifespan of over 1 million activations, minimizing maintenance and replacement costs.
- Cost-Effective Solution: The reliability and longevity of PCB Membrane Switches contribute to cost savings over the product's lifecycle.
PCB Membrane Switch Advantages:
- Enhanced Control Functionality: PCB Membrane Switches provide precise and reliable control inputs, optimizing system performance.
- User-Friendly Interface: With tactile feedback and intuitive operation, these switches enhance user satisfaction and ease of use.
- Flexible Design Options: Customizable graphics and sizes allow for seamless integration into different product designs and branding requirements.
- Swift and Accurate Response: The rapid response time ensures quick and accurate control inputs, improving operational efficiency.
- Wide Range of Applications: PCB Membrane Switches can be utilized in diverse industries, offering versatile control solutions.
- Reliable and Durable: Built to withstand demanding conditions, these switches offer long-lasting performance and minimize downtime.
- Seamless Compatibility: With multiple interface options, PCB Membrane Switches integrate smoothly with various control systems.
- Environmental Resilience: The switches' IP65 and NEMA 4X ratings ensure resistance to water, dust, and environmental factors, ensuring reliable operation in challenging environments.
- Cost-Effective Solution: PCB Membrane Switches offer a cost-effective control solution with their extended lifespan and low maintenance requirements.
- Improved User Experience: With their precise control, tactile feedback, and customizable design, these switches enhance user satisfaction and overall system performance.
Experience the power of PCB Membrane Switches and elevate your control panel interfaces to new heights. Enhance control precision, optimize user interaction, and improve operational efficiency. For more information or inquiries, please contact us.
Request for Quotation (RFQ):
If you are interested in our Custom Tactile Membrane Switch, please provide the following information for a quotation:
- Customization requirements, including size, shape, graphics, layout, and backlighting
- Quantity needed
- Application and industry details
- Specific environmental considerations (e.g., waterproof or dustproof requirements)
Delivery time and location requirements
