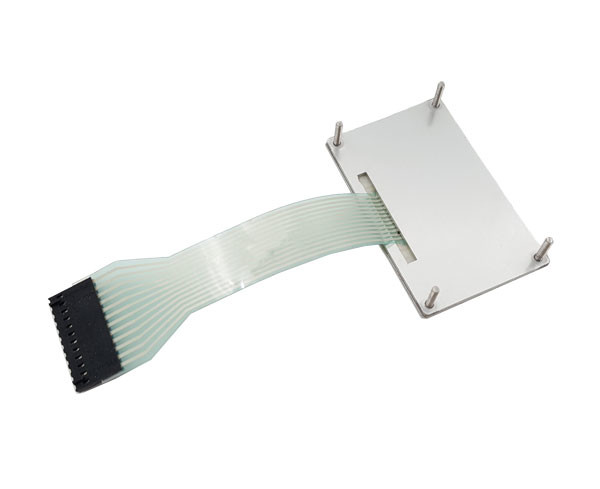

User Interface Membrane Panel Switch With User Centric Engineering And Accessibility
| Place of Origin | China |
|---|---|
| Brand Name | ADMG |
| Certification | ISO14001 ISO9001 |
| Model Number | OEM/ODM |
| Minimum Order Quantity | 2pcs |
| Price | Negotiation |
| Delivery Time | 5-8 working days |
| Payment Terms | L/C, D/A, D/P, T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Life Cycle | 1 Million To 5 Million Actuations | Material | Polyester Or Polycarbonate |
|---|---|---|---|
| Operating Voltage | ≤50VDC | Insulation Resistance | ≥100MΩ |
| Switching Current | ≤100mA | Operating Current | ≤100mA |
| High Light | user interface membrane panel switch,user interface membrane switch panel,polyester membrane panel switch |
||
Product Description
Membrane Panel Switch Introduction
Unveiling our latest innovation in user interface technology – the User-Centric Engineering Membrane Panel Switches with Enhanced Accessibility Features. These switches are meticulously crafted to provide an inclusive user experience, offering improved accessibility for individuals with varying levels of physical abilities. By prioritizing ease of use, we ensure that our switches enhance interaction for all users in a multitude of environments.
Membrane Panel Switch Specifications
|
Parameter |
Description |
|---|---|
| Interface Design | Ergonomic with visual and tactile indicators |
| Actuation Force Range | 70-300 grams (adjustable to user sensitivity) |
| Tactile Feedback | Prominent with optional vibration for impaired vision |
| Response Time | Quick with immediate tactile and auditory feedback |
| Operating Temperature | -30°C to +70°C, suitable for various climates |
| Durability | Rated for 5 million actuations per key |
| Actuation Travel | 0.3-1.0 mm (optimized for ease of use) |
| Customization Options | Braille, large print, high contrast colors, shapes |
| Electrical Rating | Low power consumption, compatible with battery-operated devices |
| Surface Texture | Anti-glare and non-slip finishes available |
Membrane Panel Switch Applications
Our Membrane Panel Switches with Enhanced Accessibility Features are designed to serve a diverse range of applications that prioritize user accessibility. They are particularly apt for assistive technology devices, educational tools, public information kiosks, and medical equipment where user-friendly interfaces are essential.
Membrane Panel Switch Features
These membrane panel switches are developed with a focus on user-centric features:
- Highly responsive keys to accommodate light touch activation
- Braille integration and large print options for visually impaired users
- High-contrast color schemes to assist users with limited vision
- Non-slip textures to aid those with limited dexterity
- Audible click and optional vibration feedback for confirmation of keypresses
- Easy-to-navigate layouts designed with input from accessibility experts
Membrane Panel Switch Advantages
Adopting our accessibility-focused membrane panel switches offers significant advantages:
- Inclusive design that extends usability to a broader audience
- Compliance with accessibility standards, enhancing product marketability
- Enhanced user satisfaction through intuitive and comfortable interfaces
- Robust construction that ensures long-term reliability despite frequent use
- Customizable options that allow for tailored solutions to specific user needs
- Positive brand image by showcasing a commitment to user-centric design principles
Request for Quotation (RFQ):
If you are interested in our Custom Tactile Membrane Switch, please provide the following information for a quotation:
- Customization requirements, including size, shape, graphics, layout, and backlighting
- Quantity needed
- Application and industry details
- Specific environmental considerations (e.g., waterproof or dustproof requirements)
- Delivery time and location requirements
