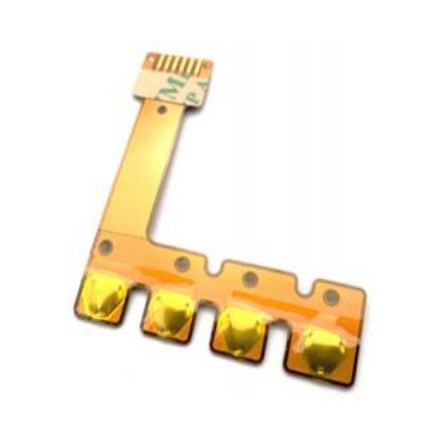

Waterproof And Dust Tight FPC Membrane Switch For Industrial Automation
| Place of Origin | China |
|---|---|
| Brand Name | ADMG |
| Certification | ISO14001 ISO9001 |
| Model Number | OEM/ODM |
| Minimum Order Quantity | 2pcs |
| Price | Negotiation |
| Delivery Time | 5-8 working days |
| Payment Terms | L/C, D/A, D/P, T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Contact Current | 100MA | Life Span | 1 Million Times |
|---|---|---|---|
| Base Film | 0.5, 1, Or 2mil Or Others | Backlight Type | LGF |
| Adhesive | 3M467/3M468 | Diemension | 105*25mm |
| High Light | dust tight fpc membrane switch,waterproof fpc membrane switch,waterproof custom membrane switch |
||
Product Description
FPC Membrane Switch Introduction:
The Waterproof FPC Membrane Switch is an advanced user interface solution designed to withstand the challenges of demanding environments. Featuring an IP65-rated protection level, this versatile product combines the benefits of a Flexible Printed Circuit (FPC) with a durable, water-resistant membrane switch, ensuring reliable operation even in the face of exposure to water, dust, and other contaminants.
FPC Membrane Switch Specifications:
|
Parameter |
Description |
|---|---|
| Circuit Structure | Single-sided, Double-sided |
| Operating Voltage | 12V DC |
| Contact Resistance | <100mΩ |
| Operating Temperature | -20°C to +70°C |
| Actuation Force | 100-500g |
| Connector Type | ZIF, FFC, FPC |
| Operating Current | 20-100mA |
| Insulation Resistance | >100MΩ |
| Storage Temperature | -40°C to +85°C |
| Circuit | FPC circuit |
FPC Membrane Switch Application Usage:
The Waterproof FPC Membrane Switch is designed for use in a variety of harsh and challenging environments, including industrial automation, outdoor equipment, marine applications, medical devices, and automotive controls. Its IP65-rated protection ensures reliable performance even in the presence of water, dust, and other environmental factors.
FPC Membrane Switch Features:
- Flexible and durable FPC construction for easy integration into diverse form factors
- Waterproof and dust-tight membrane switch design, tested to IP65 standards
- Tactile feedback and responsive performance for seamless user interaction
- Wide range of customization options for connector types, surface finishes, and tail lengths
- Robust materials and manufacturing processes for long-term reliability in demanding conditions
FPC Membrane Switch Advantages:
- Enhanced protection against water, dust, and other environmental contaminants
- Improved reliability and durability for operation in harsh or outdoor environments
- Increased design flexibility and the ability to integrate into a variety of applications
- Reduced maintenance requirements and extended service life due to the waterproof design
- Cost-effective solution for applications that require a reliable and weatherproof user interface
Request for Quotation (RFQ):
If you are interested in our Custom Tactile Membrane Switch, please provide the following information for a quotation:
- Customization requirements, including size, shape, graphics, layout, and backlighting
- Quantity needed
- Application and industry details
- Specific environmental considerations (e.g., waterproof or dustproof requirements)
- Delivery time and location requirements
