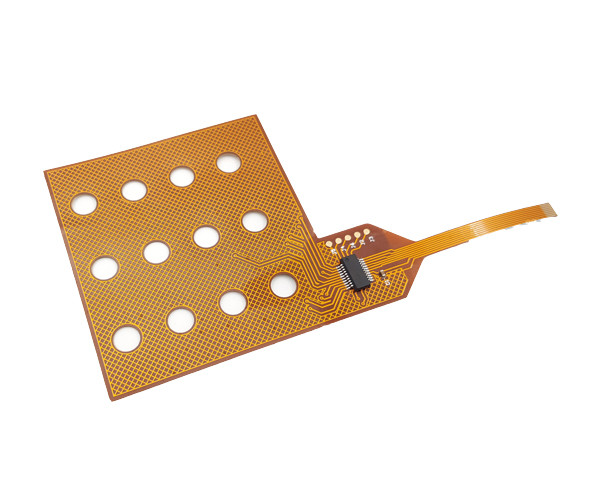

Single Layer Customizable FPC Membrane Switch For User Interface Applications
| Place of Origin | China |
|---|---|
| Brand Name | ADMG |
| Certification | ISO14001 ISO9001 |
| Model Number | OEM/ODM |
| Minimum Order Quantity | 2pcs |
| Price | Negotiation |
| Delivery Time | 5-8 working days |
| Payment Terms | L/C, D/A, D/P, T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Working Voltage | ≤50V | Top Embossing | YES/NO |
|---|---|---|---|
| Working Current | ≤100mA | Layer | Single Layer |
| Fpc | According To Requirement | Selling Point | Good LGF Light Distribute Effect |
| High Light | customizable fpc membrane switch,customizable custom membrane switch,fpc custom membrane switch |
||
Product Description
Customizable FPC Membrane Switch The Perfect Solution For User Interface Applications
FPC Membrane Switch Description:
Introducing the Customizable FPC Membrane Switch, a cutting-edge solution for user interface applications. This advanced switch combines a flexible printed circuit (FPC) with a durable membrane layer, offering a reliable and precise input control for a wide range of electronic devices. With its versatile design and exceptional performance, the Customizable FPC Membrane Switch is the ideal choice for various industries and applications.
FPC Membrane Switch Parameters:
|
Parameter |
Description |
|---|---|
| Circuit Structure | Single-sided, Double-sided |
| Operating Voltage | 12V DC |
| Contact Resistance | <100mΩ |
| Operating Temperature | -20°C to +70°C |
| Actuation Force | 100-500g |
| Connector Type | ZIF, FFC, FPC |
| Operating Current | 20-100mA |
| Insulation Resistance | >100MΩ |
| Storage Temperature | -40°C to +85°C |
| Circuit | FPC circuit |
FPC Membrane Switch Applications:
The Customizable FPC Membrane Switch is designed for a wide range of industries and applications. It is particularly suitable for medical devices, industrial control systems, consumer electronics, automotive dashboards, and home automation. This versatile switch provides precise input control and reliable performance for user interface applications.
FPC Membrane Switch Features:
- Versatile Design: The Customizable FPC Membrane Switch offers a versatile design, allowing for customization to meet specific application requirements.
- Enhanced Durability: With its durable construction, this switch is built to withstand rigorous usage and maintain consistent performance over time.
- Precise Input Control: The membrane layer provides precise input control, ensuring accurate and reliable operation for user interaction.
- Flexible Printed Circuit: The integration of a flexible printed circuit enables the switch to adapt to various form factors and complex designs.
- Customizable Graphics and Icons: The switch can be customized with graphics, icons, and backlighting, enhancing the visual appeal and branding opportunities.
- Easy Integration: Designed for easy integration, the switch supports various connector types, including ZIF, FFC, and FPC, simplifying the assembly process.
- Wide Operating Temperature Range: The switch can operate reliably in a wide temperature range, making it suitable for diverse indoor and outdoor applications.
- Low Contact Resistance: The Customizable FPC Membrane Switch exhibits low contact resistance, ensuring reliable electrical connectivity and signal transmission.
- High Insulation Resistance: The switch offers high insulation resistance, minimizing the risk of electrical leakage and ensuring safe operation.
- Comfortable User Interaction: With an actuation force range of 50-200g, the switch provides a comfortable and responsive user experience.
FPC Membrane Switch Advantages:
- Customizable Design: The Customizable FPC Membrane Switch offers a versatile design that can be tailored to specific application requirements, allowing for seamless integration.
- Durable and Reliable: This switch is built to withstand rigorous usage, ensuring enhanced durability and consistent performance over time.
- Precise and Accurate Input Control: The membrane layer provides precise input control, allowing for accurate and reliable operation in user interface applications.
- Flexible Integration: The flexible printed circuit enables the switch to adapt to various form factors and complex designs, ensuring easy integration into electronic devices.
- Enhanced Visual Appeal: Customizable graphics, icons, and backlighting options enhance the visual appeal of the switch, providing branding opportunities and aesthetic customization.
- Easy and Efficient Assembly: The switch supports various connector types and is designed for easy integration, simplifying the assembly process and reducing production time.
- Wide Temperature Range: The switch can operate reliably in a wide temperature range, making it suitable for diverse indoor and outdoor applications.
- Reliable Electrical Connectivity: Low contact resistance and high insulation resistance ensure reliable electrical connectivity and signal transmission.
- Comfortable User Experience: With an actuation force range of 50-200g, the switch provides a comfortable and responsive user experience, enhancing user satisfaction.
- Versatile Applications: The Customizable FPC Membrane Switch finds utility in medical devices, industrial control systems, consumer electronics, automotive dashboards, and home automation.
Unlock the potential of a customizable, durable, and reliable user interface with the Customizable FPC Membrane Switch. Experience precise input control, easy integration, and enhanced durability in your electronic devices. For more information or inquiries, please contact us.
Request for Quotation (RFQ):
If you are interested in our Custom Tactile Membrane Switch, please provide the following information for a quotation:
- Customization requirements, including size, shape, graphics, layout, and backlighting
- Quantity needed
- Application and industry details
- Specific environmental considerations (e.g., waterproof or dustproof requirements)
- Delivery time and location requirements
