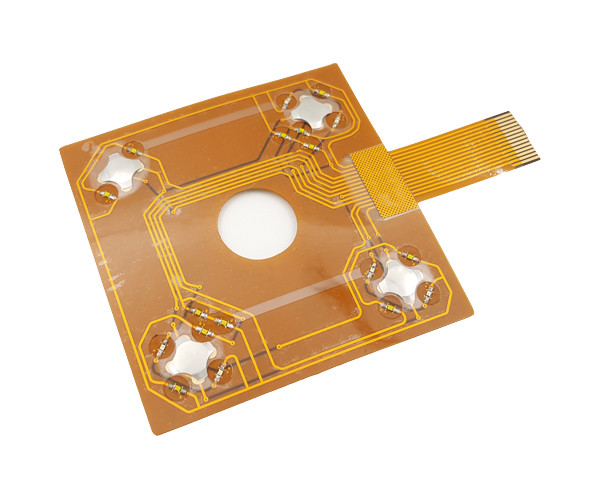

FPC Flexible Membrane Switch For Multiple Applications
| Place of Origin | China |
|---|---|
| Brand Name | ADMG |
| Certification | ISO14001 ISO9001 |
| Model Number | OEM/ODM |
| Minimum Order Quantity | 2pcs |
| Price | Negotiation |
| Delivery Time | 5-8 working days |
| Payment Terms | L/C, D/A, D/P, T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Operating Voltage | ≤50V DC | Surface | Glossy Surface Or Matte Surface |
|---|---|---|---|
| Actuation Travel | 0.1-0.4mm | Applications | Telecommunication Equipment |
| Feature | Long Life | Keypad Button | Aterial: PET/PE/PC/PVC |
| High Light | fpc flexible membrane switch,fpc custom membrane switch,multiple applications custom membrane switch |
||
Product Description
FPC Membrane Switch Introduction:
The Flexible FPC Membrane Switch is a innovative human-machine interface solution that combines the benefits of a Flexible Printed Circuit (FPC) with a tactile membrane switch. This thin, durable, and responsive interface is designed to provide a seamless user interaction experience in a variety of applications.
FPC Membrane Switch Specifications:
|
Parameter |
Description |
|---|---|
| Circuit Structure | Single-sided, Double-sided |
| Operating Voltage | 12V DC |
| Contact Resistance | <100mΩ |
| Operating Temperature | -20°C to +70°C |
| Actuation Force | 100-500g |
| Connector Type | ZIF, FFC, FPC |
| Operating Current | 20-100mA |
| Insulation Resistance | >100MΩ |
| Storage Temperature | -40°C to +85°C |
| Circuit | FPC circuit |
FPC Membrane Switch Application Usage:
The Flexible FPC Membrane Switch is designed for a wide range of applications, including consumer electronics, industrial controls, medical devices, automotive controls, and home appliances. Its thin profile, durable construction, and responsive tactile feedback make it an ideal choice for user interface solutions that require a seamless and reliable interaction experience.
FPC Membrane Switch Features:
- Thin and flexible FPC construction for integration into space-constrained designs
- Tactile membrane switches with a responsive and satisfying user experience
- Durable design that can withstand millions of switch actuation cycles
- Wide range of customization options for surface finishes, connector types, and tail lengths
- Robust materials and manufacturing processes for reliable long-term performance
FPC Membrane Switch Advantages:
- Enhanced user experience through a thin, responsive, and tactile interface
- Improved design flexibility and the ability to integrate into a variety of form factors
- Reduced assembly complexity and simplified installation process
- Cost-effective solution for applications that require a durable and reliable user interface
- Compatibility with a wide range of manufacturing processes and assembly techniques
Request for Quotation (RFQ):
If you are interested in our Custom Tactile Membrane Switch, please provide the following information for a quotation:
- Customization requirements, including size, shape, graphics, layout, and backlighting
- Quantity needed
- Application and industry details
- Specific environmental considerations (e.g., waterproof or dustproof requirements)
- Delivery time and location requirements
