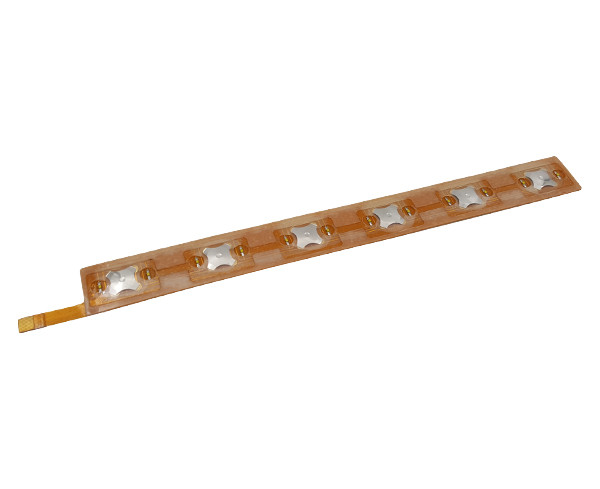

Electronic Devices FPC Membrane Switch Combining Flexibility And Durability
| Place of Origin | China |
|---|---|
| Brand Name | ADMG |
| Certification | ISO14001 ISO9001 |
| Model Number | OEM/ODM |
| Minimum Order Quantity | 2pcs |
| Price | Negotiation |
| Delivery Time | 5-8 working days |
| Payment Terms | L/C, D/A, D/P, T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Backlight Type | EL Panel | Printing | Screen |
|---|---|---|---|
| Rear Adhesive | 3M468, 3M467 | Thickness | 0.125mm-0.6mm |
| Cross Reference | PET/PC | Real Adhesive | 3M467 |
| High Light | Electronic Devices FPC Membrane Switch,0.6mm FPC Membrane Switch,0.125mm custom membrane switches |
||
Product Description
FPC Membrane Switch Description:
Introducing the FPC Membrane Switch, a versatile and reliable solution for user interface applications. This innovative switch combines a flexible printed circuit (FPC) with a membrane layer, offering a durable and responsive interface for a wide range of electronic devices. With its compact design and exceptional performance, the FPC Membrane Switch is ideal for various industries and applications.
FPC Membrane Switch Parameters:
|
Parameter |
Description |
|---|---|
| Circuit Structure | Single-sided, Double-sided |
| Operating Voltage | 12V DC |
| Contact Resistance | <100mΩ |
| Operating Temperature | -20°C to +70°C |
| Actuation Force | 100-500g |
| Connector Type | ZIF, FFC, FPC |
| Operating Current | 20-100mA |
| Insulation Resistance | >100MΩ |
| Storage Temperature | -40°C to +85°C |
| Circuit | FPC circuit |
FPC Membrane Switch Applications:
The FPC Membrane Switch is widely used in various industries for user interface applications. It is particularly suitable for consumer electronics, medical devices, industrial control systems, automotive dashboards, and home automation. This versatile switch provides a reliable and responsive interface for user interaction in electronic devices.
FPC Membrane Switch Features:
- Flexible and Durable: The FPC Membrane Switch utilizes a flexible printed circuit and a robust membrane layer, ensuring durability and long-lasting performance.
- Compact Design: With its slim profile and compact design, this switch can be easily integrated into space-constrained electronic devices and control panels.
- Responsive Tactile Feedback: The membrane layer offers tactile feedback, providing users with a responsive and intuitive interface for seamless operation.
- Customizable Design: The FPC Membrane Switch can be customized with various graphics, icons, and backlighting options, allowing for branding and enhanced aesthetics.
- Easy Integration: The switch is designed for straightforward integration, with options for ZIF, FFC, or FPC connectors, simplifying the assembly process.
- Wide Operating Temperature Range: The switch can operate reliably in a wide temperature range, making it suitable for both indoor and outdoor applications.
- Low Contact Resistance: The FPC Membrane Switch exhibits low contact resistance, ensuring reliable electrical connectivity and signal transmission.
- High Insulation Resistance: The switch offers high insulation resistance, minimizing the risk of electrical leakage and ensuring safe operation.
- Low Actuation Force: The switch requires a low actuation force, providing a comfortable and effortless user experience.
- Long Lifespan: The FPC Membrane Switch is built to withstand repeated use, offering a long lifespan and reliable performance.
FPC Membrane Switch Advantages:
- Enhanced User Experience: The FPC Membrane Switch provides a responsive and intuitive user interface, enhancing the overall user experience.
- Versatile Applications: This switch finds utility in a wide range of industries, including consumer electronics, medical devices, industrial control systems, automotive dashboards, and home automation.
- Durable and Reliable: The combination of a flexible printed circuit and a robust membrane layer ensures durability and reliable performance in various environments.
- Compact and Space-Saving: The slim and compact design of the switch allows for easy integration into space-constrained electronic devices and control panels.
- Customization Options: The switch can be customized with graphics, icons, and backlighting, offering branding opportunities and enhanced aesthetics.
- Easy Integration: The FPC Membrane Switch is designed for easy integration, simplifying the assembly process and reducing production time.
- Wide Temperature Range: The switch can operate reliably in a wide temperature range, making it suitable for diverse indoor and outdoor applications.
- Reliable Electrical Connectivity: Low contact resistance and high insulation resistance ensure reliable electrical connectivity and signal transmission.
- Comfortable User Interaction: The low actuation force of the switch offers a comfortable and effortless user experience.
- Long Lifespan: The FPC Membrane Switch is built to withstand repeated use, providing a long lifespan and consistent performance.
Unlock the potential of a flexible, durable, and reliable user interface with the FPC Membrane Switch. Experience enhanced user interaction, compact design, and customizable options in your electronic devices. For more information or inquiries, please contact us.
Request for Quotation (RFQ):
If you are interested in our Custom Tactile Membrane Switch, please provide the following information for a quotation:
- Customization requirements, including size, shape, graphics, layout, and backlighting
- Quantity needed
- Application and industry details
- Specific environmental considerations (e.g., waterproof or dustproof requirements)
- Delivery time and location requirements
